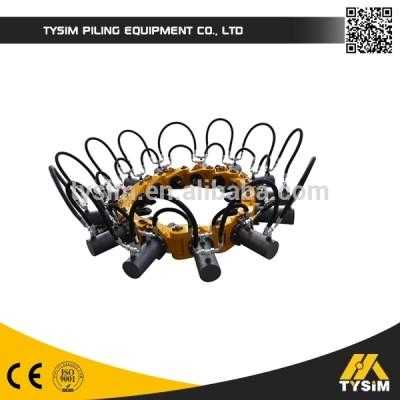

Hydraulic Pile Breaker Concrete Round Pile Head Cutter TYSIM KP315A
KP315A Round Pile Breaker (13 Modules Combination)
|Pile Diameter||300~1050mm||Max Rod Pressure||280 KN||Crowd Stroke||135mm|
|Max Crowd Pressure||30 Mpa||Max Cylinder Required||20 L/min||Quantity/8h||60/8h|
|Max Single Cutting Height||400mm||Matched Machinery Tonnage||≥20T||Sinle Module Weight||100 KG|
|Operating Size||2098*4840mm||Overall Weight||1.7T||Single Module Size||645*444*316mm|
|Module Number||Diameter Range||Platform Weight||Weight||Height Of Single Crush Pile|
a). The hydraulic pile breaker have the most advanced way of breaker concrete piles in the world,
and do with high efficiency, high life, low construction noise.
b). The machine performance is stable, simple operation, easy
maintenance, environmental protection and energy saving.
c). When it is working, it can be fast connected with such as
excavators, cranes who can provide power equipments.
Pile breaker should meet the following requirements:
a). To prevent unable to transport spoil caused by insufficient
lifting force of excavator, it is necessary to determine the broken
pile length each time according to the power of the selected
b). To prevent unable to remove spoil of pile cutting after pouring
concrete and steel solidification, it is unsuitable to use
pre-springing on the top of pouring concrete reinforcing cage after
completion of pile, and meanwhile it should install PVC pipes on
the rebar of pile top;
c). After mechanical amputation of pile head, the section needs for
simply processing, a air compressor is needed for auxiliary
